Transforming Metal: The Process of Creating 3D Prints Through Lost Resin Casting

A Guide to Lost-Resin Casting: From Digital Design to Solid Metal

Lost-resin casting is a powerful manufacturing technique that bridges the gap between high-resolution digital design and the enduring strength of cast metal. By combining the precision of 3D printing with the traditional principles of investment casting, this method enables artists, engineers, and jewelers to create intricate metal components with a level of detail that would be difficult or impossible to achieve through conventional means.

The Lost-Resin Casting Process: A Step-by-Step Breakdown

The process transforms a digital file into a solid metal object through several critical stages.

1. Design and 3D Printing: The journey begins with a 3D model created in computer-aided design (CAD) software. This digital blueprint is then brought to life using a high-resolution 3D printer and a specialized, photopolymer resin formulated to burn away cleanly. This "castable resin" pattern is the foundation for the entire process.

2. Spruing and Investing: The resin print is attached to a wax base, and channels known as "sprues" are added. These sprues will later allow molten metal to flow into the mold and gases to escape. The entire assembly is then placed inside a cylinder, called a flask, and a ceramic-like slurry known as "investment" is poured around it, completely encasing the print.

3. The Burnout Cycle: Once the investment has set, the flask is placed into a kiln. During a carefully controlled heating cycle, two things happen: the investment material is cured and hardened, and the resin pattern completely combusts and vaporizes. This is the crucial "lost resin" step, leaving a perfect, high-detail negative cavity within the hardened investment mold.

4. Casting the Metal: Molten metal—such as bronze, silver, gold, or aluminum—is then poured into the hollow cavity of the hot mold, often with the aid of a vacuum or centrifugal force to ensure the metal fills every detail.

5. Divesting and Finishing: After the metal has cooled and solidified, the investment mold is broken away, a process called "divesting." This reveals the rough metal casting. Finally, the piece is cut from the sprue system, cleaned, and polished to achieve the desired final finish.

Key Applications of Lost-Resin Casting

The ability to produce complex, one-off, or small-batch metal parts makes this technique invaluable across numerous industries.

• Jewelry: Artisans can create highly detailed filigree, custom settings, and organic shapes that would be painstakingly difficult to carve by hand.

• Aerospace & Engineering: Engineers use this method for prototyping and fabricating lightweight, complex parts like custom brackets, turbine blades, or specialized components where structural integrity and precision are paramount.

• Automotive: The technique is ideal for creating bespoke components for custom builds, restoring legacy vehicles, and prototyping parts for performance optimization.

• Dentistry and Medicine: Lost-resin casting is used to create precise dental crowns, bridges, and custom-fit surgical implants.

Conclusion: The Future of Accessible Metal Manufacturing

Lost-resin casting represents a powerful synergy between digital precision and timeless metallurgy. It democratizes the production of intricate metal objects, empowering small studios and large industries alike to turn complex digital concepts into tangible, durable realities. As 3D printing technology continues to advance and the range of castable resins and metal alloys expands, the innovative potential of this versatile technique is only just beginning to be realized.

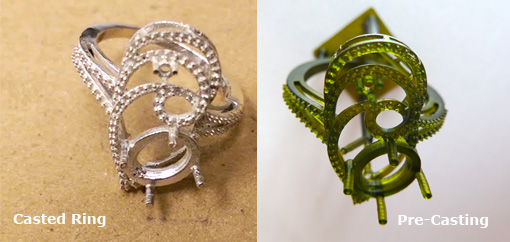

Image source: https://facfox.com/docs/kb/essential-tips-for-lost-wax-investment-casting
